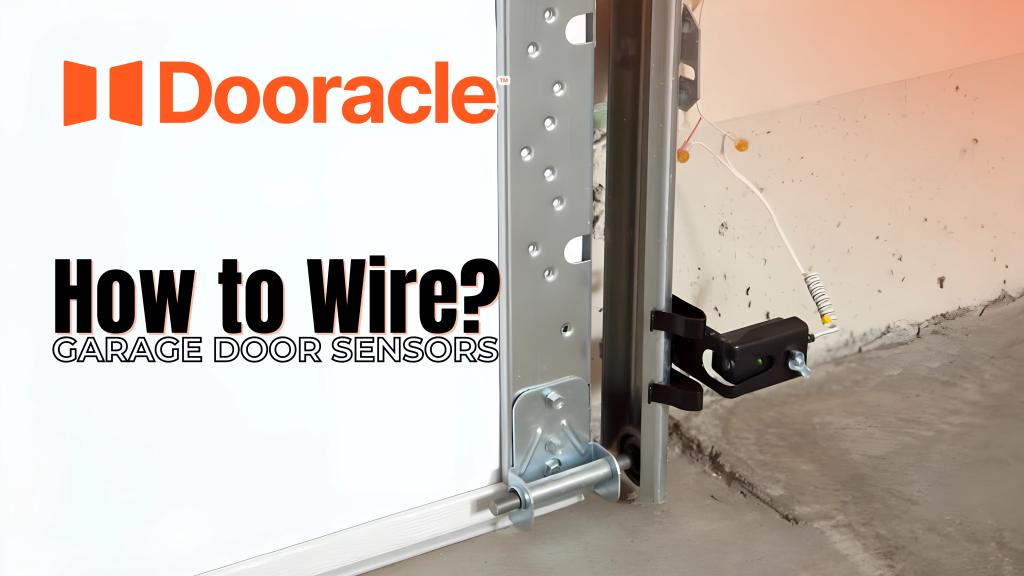

How to Wire Garage Door Sensors: Only in 6 Steps

About Us

Introduction

Garage door sensors are a crucial safety feature that prevents the door from closing when an object or person is in the way. Sensors that are not installed properly or don’t function correctly can lead to accidents and harm, so accurate installation is essential. This article will offer numerous features to help you get the most from your garage door sensors, and benefit others.


How to Wire Garage Door Sensors

Understanding
Garage Door Sensors

Garage-door sensors are generally infrared devices that will detect whether
there is any obstruction in the path of the garage door. They are positioned
on either side of the door about six inches off ground level. Each sensor has
an emitter and receiver. When the path from the sensors to these sensors is
clear, then everything acts normally; if anything stops the beam of infrared
light, the door can only be closed tortuously slowly, and laboriously.

Tools and Materials Needed

Before you start, make sure you have the following tools and materials:

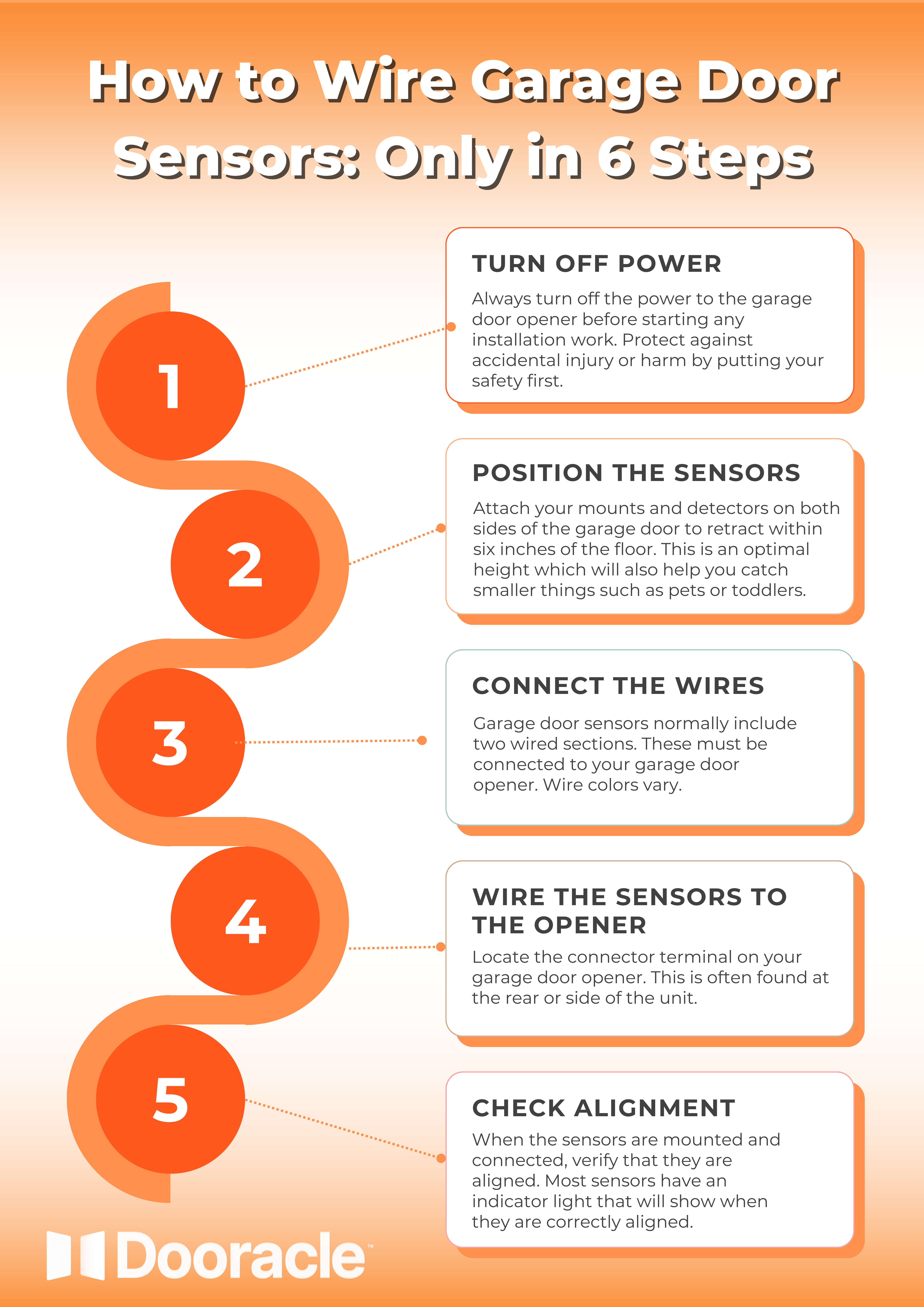

Step-by-Step Installation



1. Turn Off Power:

  • Safety first: Always turn off the power to the garage door opener before starting any installation work. Protect against accidental injury or harm by putting your safety first.




    2. Position the Sensors:

  • Attach your mounts and detectors on both sides of the garage door to retract within six inches of the floor. This is an optimal height which will also help you catch smaller things such as pets or toddlers.
  • Use the mounting brackets to fix each sensor in place. Make sure they are across from each other without any obstructions between them whatsoever, and that they do not tilt from side to side once fixed in place.




    3. Connect the Wires:

  • Garage door sensors normally include two wired sections. These
    must be connected to your garage door opener. Wire colors vary, but in general, one is for power (red) and the other for
    ground (black or white).

  • Strip the wires if they are not already prepared. Use wire strippers to remove about 1 cm of insulation from either side of each wire.




    4. Wire the Sensors to the Opener

  • Locate the connector terminal on your garage door opener. This
    is often found at the rear or side of the unit.

  • Connect the wires of each sensor to the appropriate terminals.
    The garage door opener may have specific slots called by the
    sensor wires. If in doubt, please refer to your model’s manuals.

  • Tighten each wire securely, ensuring a firm connection with no loose strands poking out.




    5. Check Alignment:

  • When the sensors are mounted and connected, verify that they are aligned. Most sensors have an indicator light that will show when they are correctly aligned. Add or deduct as necessary until the indicator light indicates that the beam across both sensors is unobstructed.t.




    6. Restore Power and Test:

  • When all connections are made and the bottom sensor is tightened in position, turn the power back on to the garage
    door opener.

  • Set to make sure that the sensors are working by rolling them a
    ball when the door is closing between them. The door should stop and return to its open position as soon as the beam is
    disrupted

    Troubleshooting Common Issues

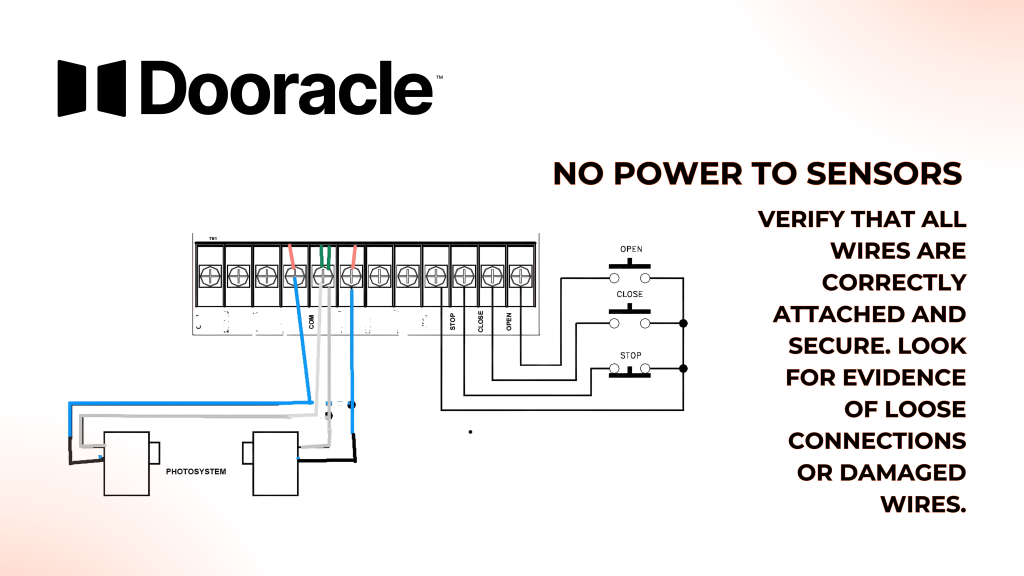

    No Power to Sensors:

    Verify that all wires are correctly attached and secure. Look for evidence of loose connections or damaged wires.

    Sensors Not Aligning:

    You must adjust the position of the sensors so that the lights show that the beam is not blocked

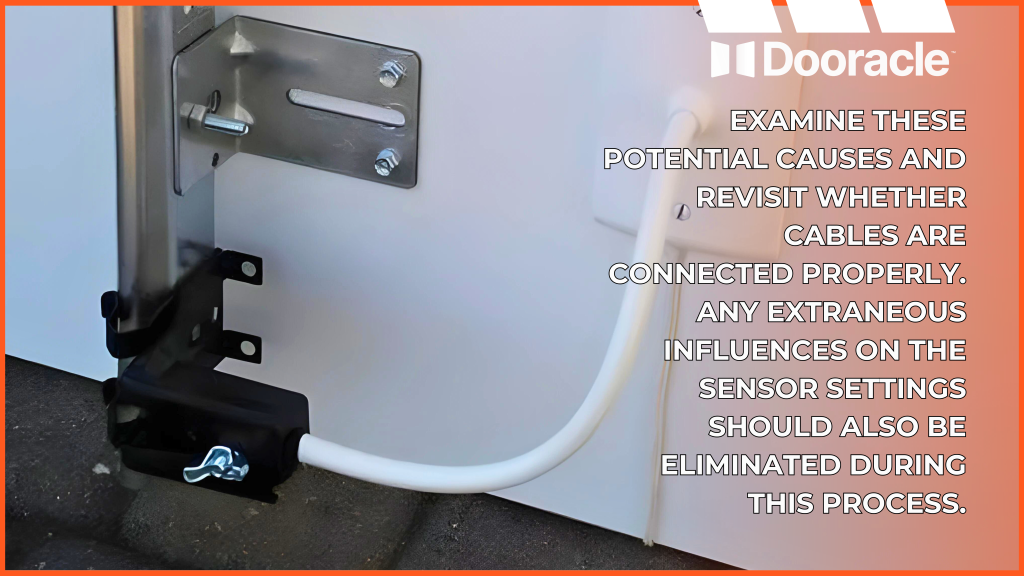

    Intermittent Operation:

    This can be because of factors such as the sensors are in direct sunlight or there are problems with the wiring. Examine these potential causes and revisit whether cables are connected properly. Any extraneous influences on the sensor settings should also be eliminated during this process.

    Conclusion

    Proper wiring of garage door sensors is vital for the safety and operation of your garage door. With these steps homeowners can be sure that their garage door sensors have been installed properly and are operating as they should. Regular maintenance procedures and tests will ensure that the door system is both safe and functional. Through this comprehensive guide, homeowners can gain the knowledge they need to wire their garage door sensors so that their garage operates safely and smoothly
